| Basic Information | ||
| Supported CPU | Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package (Go to GIGABYTE’s website for the latest CPU support
L3 cache varies with CPU |
|
| Chipset | Intel® H310 Express Chipset | |
| BIOS | 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM sockets | |
| Supported Memory | DDR4 2666/2400/2133 MHz memory modules
ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 32 GB | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
|
| Max Shared Memory | 1 GB | |
Connector & Ports |
||
| HDMI | 1 x HDMI port | |
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors |
|
| Audio | Realtek® ALC887 codec
High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
| Internal I/O Ports | 24-pin ATX main power connector
8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector CPU fan header system fan header front panel header front panel audio header USB 3.1 Gen 1 header USB 2.0/1.1 header Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) serial port header parallel port header Clear CMOS jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

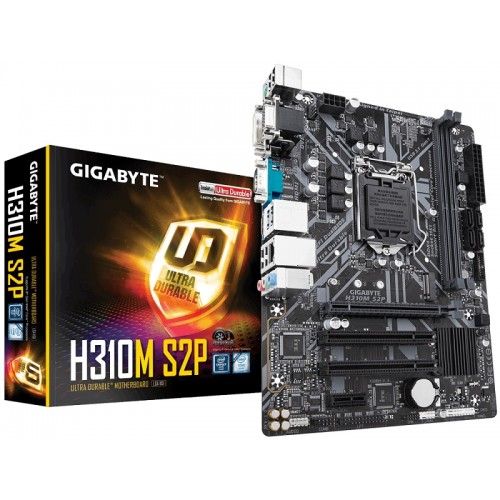

Gigabyte H310M S2P 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has dual channel DDR4 maximum 32GB memory and it has the capability of Ultra-Fast M.2 with PCIe Gen2 X2 & SATA and USB 3.1 Gen 1 interface. If we consider the graphics of this Anti-Sulfur Resistors Design board supports Intel HD graphics having the maximum resolution of 4096×2160@30 Hz for HDMI and 1920×1200@60 Hz for D-Sub & DVI-D port. This High Quality board has 2 x PCIe & 2 x PCI slots, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, GIGABYTE UEFI DualBIOS™ and CEC 2019 Ready.
Gigabyte H310M S2P latest 8th gen mainboard with Intel H310 Express chipset is a great choice for your desktop setup and have the best price in Chattagram, Rangpur, Dhaka, Khulna & Sylhet. Order your PC components from Star Tech online shop and have the delivery at any place in Bangladesh.
| Brand | |
|---|---|
| Processor Brand |
INTEL |
| Generation |
8th Gen |
| RAM Type |
DDR4 |
| Bus Speed |
2133 MHz ,2400 MHz ,2666 MHz |
| RAM Slot |
2 |
| M.2/NVMe Expention slot |
1 |
| HDMI Port |
YES |
The latest price of Gigabyte H310M S2P 8th Gen Micro ATX Motherboard in Bangladesh is .00৳. You can buy the Gigabyte H310M S2P 8th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
